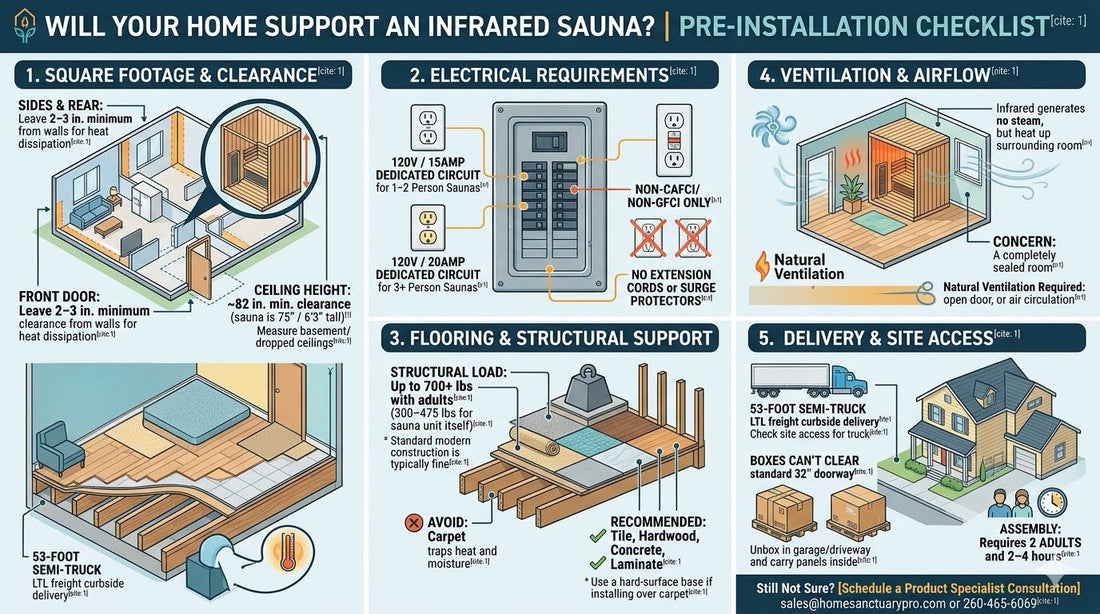

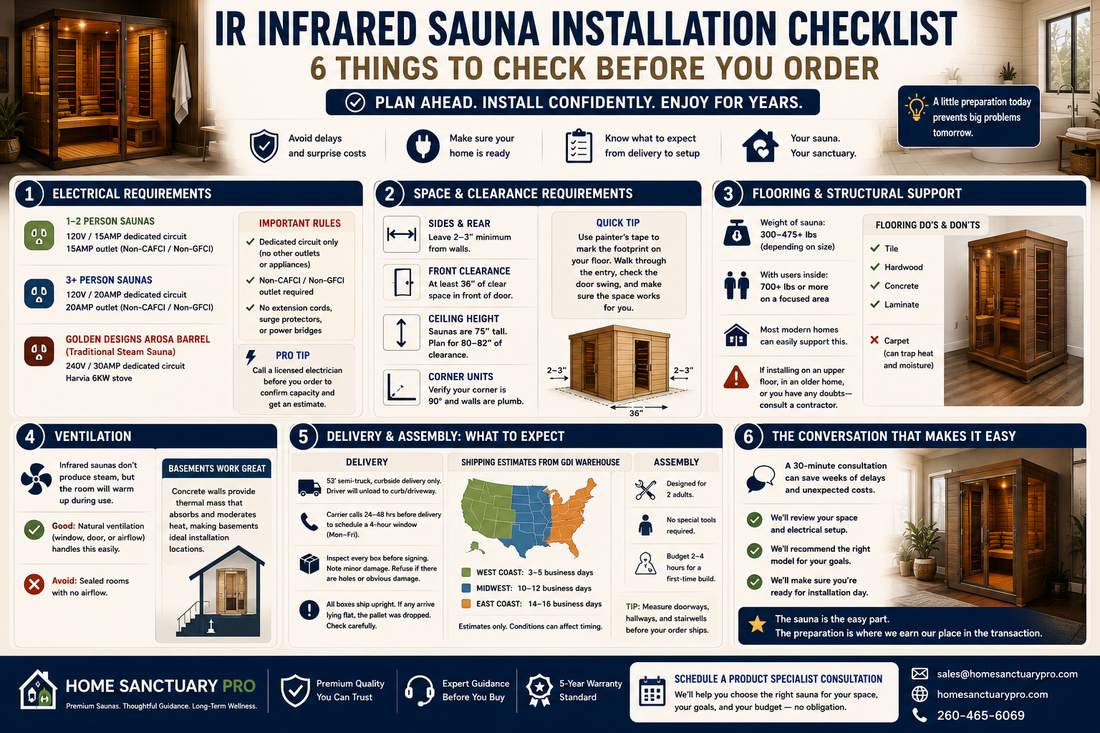

Infrared Sauna Pre-Installation Guide

Most people spend weeks researching which sauna to buy. They dig into EMF ratings, wood types, heating technologies, and price points. Then they place the order and realize they never asked the question that actually matters first: is my home ready for this?

Here's the thing — an infrared sauna isn't a plug-in appliance you set in a corner and forget about. It's a permanent wellness installation that interacts with your home's electrical system, floor structure, ventilation, and available square footage in ways that are worth understanding before anything ships. Getting this wrong doesn't just cause inconvenience. It can delay your installation by weeks and add costs you weren't expecting.

Work through this checklist once before you order and you'll arrive at installation day fully prepared — no surprises, no emergency calls to an electrician.



1. Electrical Requirements

This is where most buyers get caught off guard, so let's be specific.

1 and 2-person infrared saunas require a dedicated 120V / 15AMP circuit with a standard 15AMP outlet. "Dedicated" means this circuit serves nothing else — no other outlets, no other appliances sharing that breaker. The outlet must be Non-CAFCI and Non-GFCI. Do not use extension cords, surge protectors, or power bridges.

3-person and larger infrared saunas step up to a dedicated 120V / 20AMP circuit with a 20AMP outlet. Same rules apply — dedicated line, Non-CAFCI/Non-GFCI only. If you're buying a 3-person unit and your existing outlets are all standard 15AMP, you'll need an electrician to run a new 20AMP circuit before your sauna arrives.

For the Golden Designs Arosa Barrel outdoor traditional sauna (GDI-B004-01), the Harvia 6KW stove requires 240V / 30AMP service — the same voltage used for electric dryers and ranges. If you don't have 240V near your installation point, plan for additional electrical work.

A quick note on circuit breakers: they do go bad over time. Even if you have a dedicated breaker that trips repeatedly, it may need replacement rather than reset. Your electrician can check this during their assessment.

What to do before ordering: Call a licensed electrician and ask two questions — do I have capacity for a new dedicated circuit, and what will it cost to run it to my installation location? In most homes this is a simple job. In older homes with limited panel capacity, it might mean a panel upgrade. Better to know now than after your sauna is sitting on your driveway.



2. Space and Clearance Requirements

The dimensions on a product page tell you how big the sauna is. They don't tell you how much room you actually need around it.

Here's a practical guide:

Sides and rear: Leave 2–3 inches minimum from walls. This allows heat to dissipate properly and prevents the exterior panels from scorching wall surfaces during extended use.

In front of the door: Budget at least 36 inches of clear space. You need room to open the door fully and step in and out without crouching or shuffling.

Ceiling height: Most standard infrared saunas stand 75 inches tall (6'3"). Add the roof overhang — typically 4–5 inches — and you need at least 80–82 inches of clearance. Standard residential ceilings at 96 inches aren't a problem. Basement installations with dropped ceilings can be, so measure before you order.

Corner units: The Golden Designs Reserve Edition Corner (GDI-8035-03) has a 61" x 61" footprint. Before ordering a corner unit, verify that your corner is actually 90 degrees and that both walls are plumb. Older homes sometimes have corners that aren't exactly square, which creates gaps and fit issues.

Here's a tip that takes five minutes and saves a lot of frustration: use painter's tape to mark the exact footprint of the sauna on your floor before you order. Walk through the entry. Check the door swing. Make sure there's room to actually use the space. You'd be surprised how often this exercise changes the model someone chooses.



3. Flooring and Structural Support

Infrared saunas are substantial pieces of equipment. A 2-person unit typically weighs 300–400 lbs. A 4-person unit can push 475 lbs or more. Factor in one or two adults inside and you're putting 700+ lbs on a focused area of floor.

For most modern residential construction — ground floor slab or standard wood-framed floor — this isn't a problem. Wood framing is typically rated for 40–50 lbs per square foot and a sauna distributed across its footprint falls comfortably within that range.

Where it's worth a second thought: older homes, converted spaces, upper floor installations, and rooms with unusual structural history. If you have any doubt about your floor, a quick conversation with a contractor or structural engineer costs very little and gives you certainty.

On flooring type: infrared saunas install happily on tile, hardwood, concrete, or laminate. Carpet is the one to avoid — it traps heat under the unit and creates moisture conditions that aren't good for either the sauna or your floor over time. If your installation space is carpeted, plan for a hard-surface base under the sauna footprint.



4. Ventilation

Infrared saunas don't produce steam that needs to vent, unlike traditional steam saunas. But the room around the unit will get warm during use, especially in smaller spaces.

A room with natural ventilation — a window, a door to an adjacent space, or any air circulation — handles this without issue. The concern is a completely sealed room with no airflow, where heat accumulates and ambient temperature rises significantly during extended sessions.

Basement installations with concrete walls actually work quite well because of the thermal mass — the concrete absorbs and moderates heat effectively. Finished basement rooms with drywall and standard ceiling heights are among the most popular installation locations for exactly this reason.



5. Delivery and Assembly — What to Actually Expect

Your sauna will arrive on a 53-foot semi-truck with a single driver. This is curbside delivery — the driver will unload the pallet to your curb or the end of your driveway, and that's where their responsibility ends. There is no white glove delivery, and the driver won't bring anything inside your home (though some drivers will take it to your garage at their discretion — but don't count on it).

The freight carrier will call you 24–48 hours before delivery to schedule a delivery window — typically a 4-hour window, Monday through Friday. They will not deliver without speaking to you first. Your tracking number shows when the sauna arrives at the local freight terminal, not when it will be delivered to your door.

Shipping timeframes from the GDI warehouse:

These are estimates. Environmental conditions, transit issues, and carrier availability can all affect timing. Build in a buffer when you're planning your installation.

When the delivery arrives:

Inspect every box before you sign the delivery receipt. Minor scratches, scuff marks, or small dents on the outside of the cartons should be noted on the receipt — you don't need to open the boxes to do this. If you see softball-sized holes or punctures that appear to have damaged the wood inside, refuse the delivery. That's forklift damage and GDI will ship a replacement.

One more thing worth knowing: all sauna boxes are shipped standing upright on the pallet. If any boxes arrive lying flat, the pallet was dropped. Check carefully for exposed or damaged wood before accepting.

Getting it inside and assembling:

Measure your doorways, hallways, and any stairwells before your order ships. The individual panels inside the boxes are manageable, but the boxes themselves may not clear a standard 32-inch doorway. Most installers unbox in the garage or driveway and carry panels in one at a time.

Assembly is designed for 2 adults without special tools. Budget 2–4 hours for a first-time build. Having a second person is not optional — sauna panels are heavy and awkward to position solo.

If you have an unusually long driveway, a remote property, low-hanging trees, or any other access concern for a 53-foot truck, let us know before your order ships. These situations are solvable but need to be addressed in advance.



6. The Conversation That Makes All of This Easier

Everything in this checklist is something we cover in a pre-purchase consultation. Thirty minutes before you order, we walk through your space, your electrical situation, your access logistics, and which model actually fits your household and your goals.

We do this not because it's required but because a $4,000–$6,000 investment deserves more than a tracking number. When your sauna arrives, we want you to be ready for it — not figuring out your electrical situation while it sits in boxes in your driveway.

Schedule a Product Specialist Consultation or reach us at sales@homesanctuarypro.com or 260-465-6069.

The sauna is the easy part. The preparation is where we earn our place in the transaction.
